Léo's head

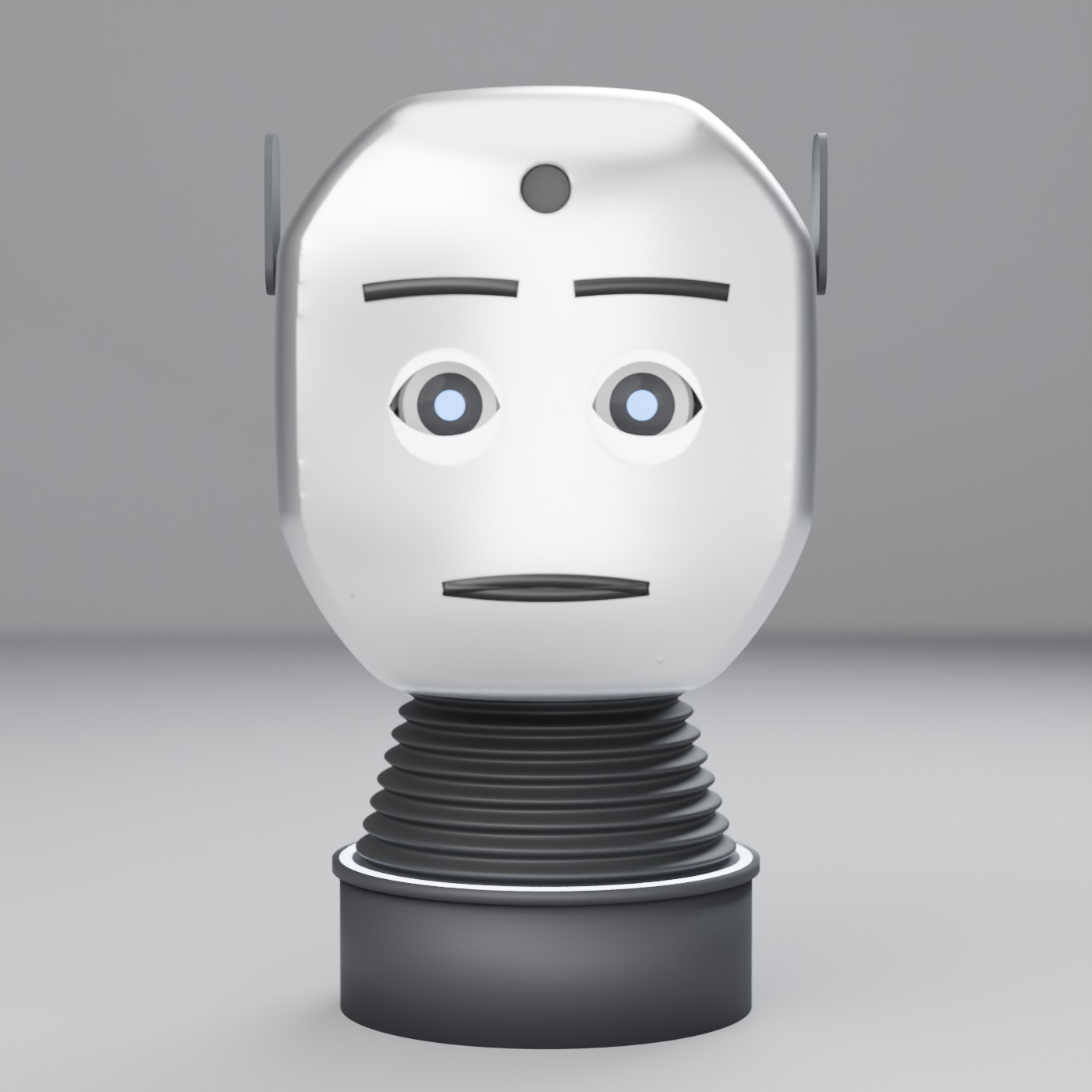

Léo is a home companion robot in development. This page shows the current head (version 17) in a finish study: hood and face in bead-blasted, clear-anodised aluminium, a matte charcoal lower shell, and a minimal face where only the eyes, brows and lips show.

Animated sequence (24 s): he notices you, says hello, listens, is surprised and smiles.

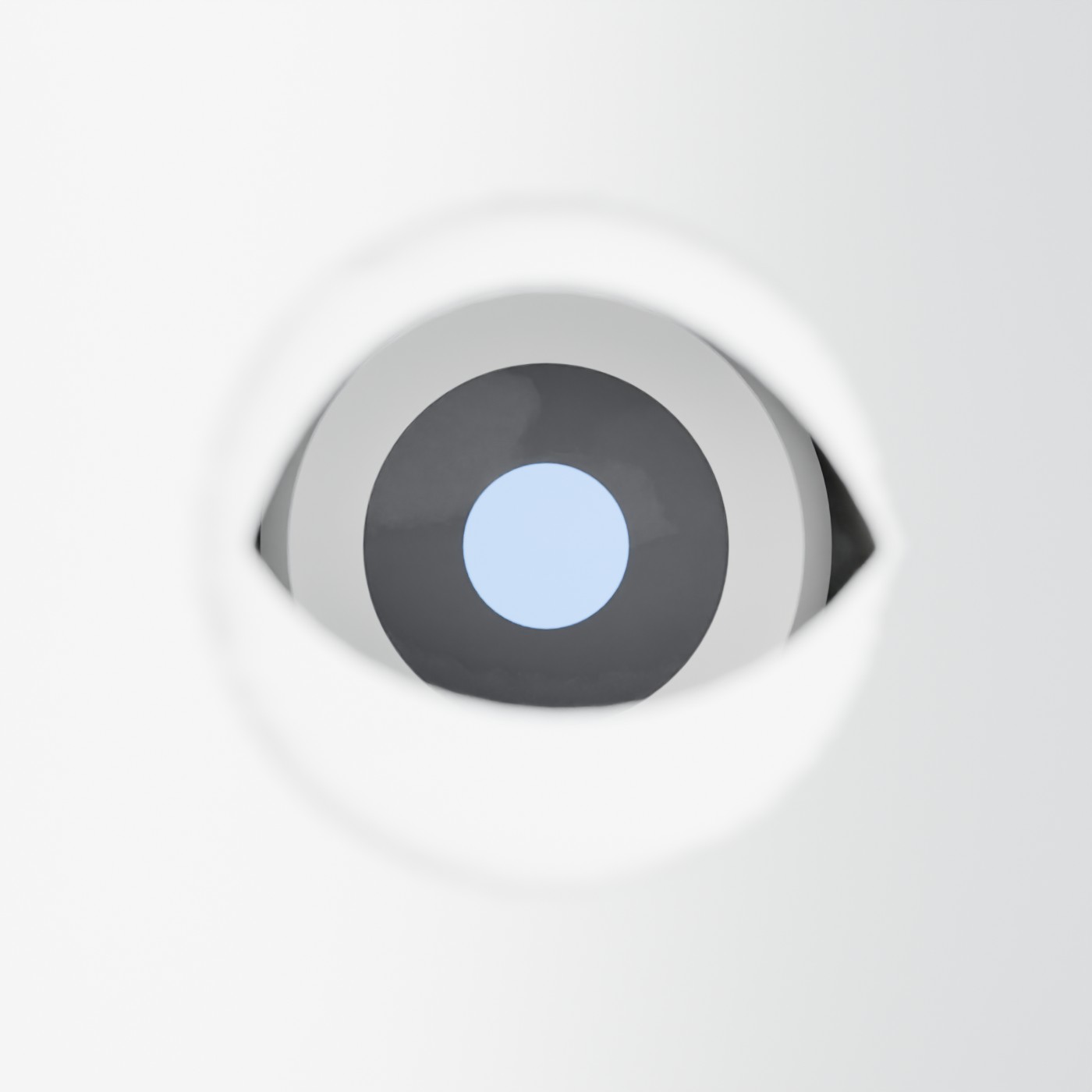

Close-up of the left eye: white globe and lids, blue-lit pupil, aluminium face — The left eye: white globe and lids, 9 mm pupil lit blue from behind.

Open the interactive 3D head

Renders

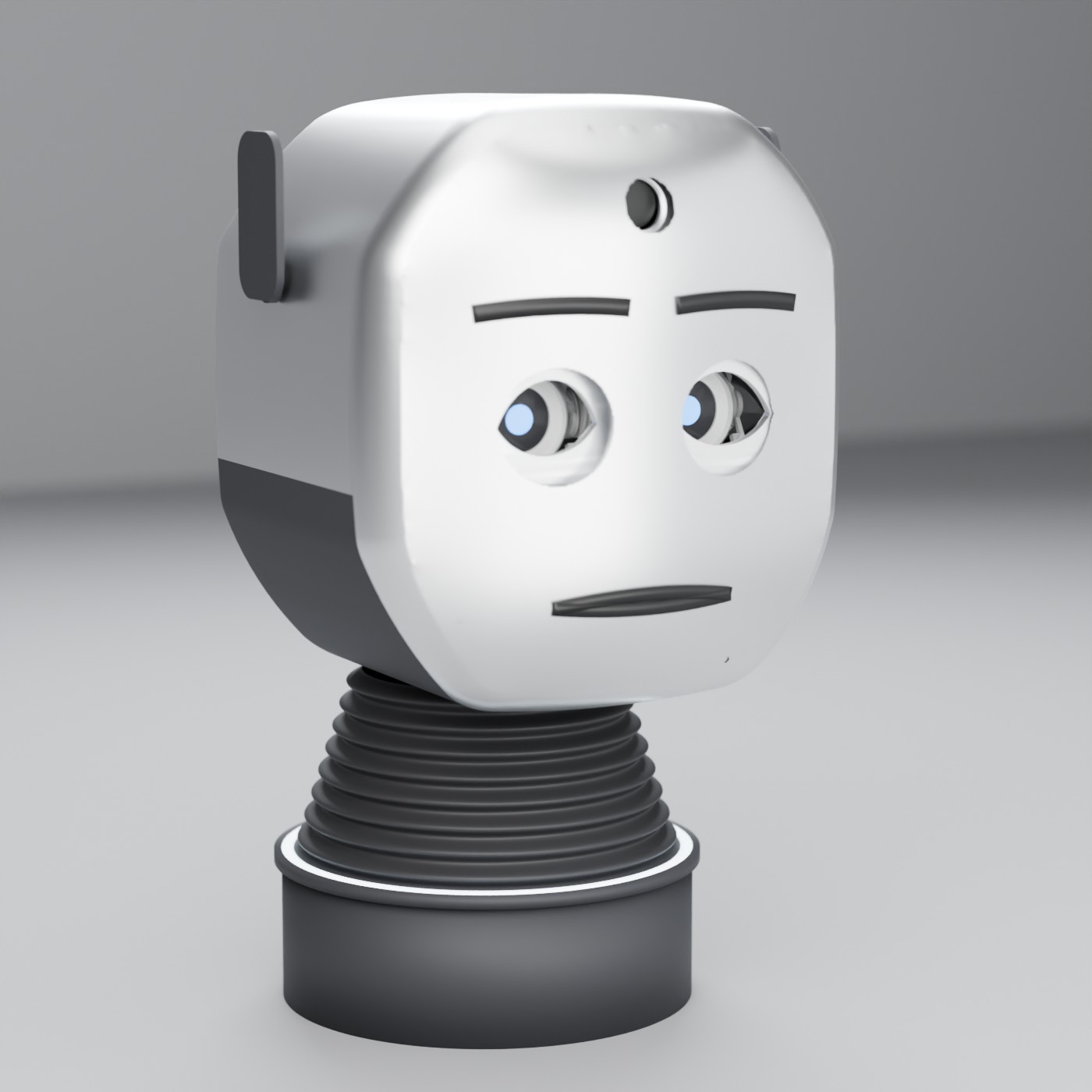

Three-quarter view of the head on its neck — Three-quarter view

At a glance

Size: about 165 × 186 × 158 mm (W × H × D, shell only)
Face: two moving eyes with upper and lower lids, two brows, two lips
Eyes: pan ±30°, tilt ±20°; pupil lit from behind
Senses: camera in the forehead, microphone array in the crown
Neck: pleated silicone boot on a charcoal collar with a light ring
Finish: 6061 aluminium hood and face, bead-blasted and clear anodised; PA12 nylon lower shell

Documents

Head design brief (PDF, 3 pages)
Size, materials, the minimal face, movement and next steps.
The brief's LaTeX source

All pictures are computer renders of the design with simulated materials, not photographs of a built head. The motion is illustrative. Updated 08/10/2026.
